The
system is mainly used for monitoring load of pumping unit, displacement, motor
current, temperature of single well output line, injection pressure and flow, at
the same time collecting video data by a wireless GPRS/CDMA/3G network real-time
delivery to the central monitoring. According to the monitoring center overrun
value is set, they system automatically determines whether the pumping unit is
working properly, and alarm information, at the same time start the video
monitoring site and notify the relevant personnel to take action.

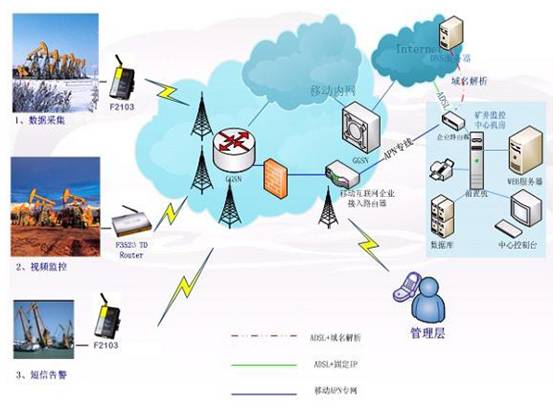

Schematic diagram of oil monitoring system
The main features of oil monitoring system
1. Data collection: load, displacement, indicator diagram, stroke, time, outlet temperature, current, voltage, power, balance rate.
2. Alarm information: start-up and stop, parameter error alarm.
3. Calculation functions: indicator diagram yield, oil well intelligent diagnosis.
4. Water injection well can collect data functions: pressure, instantaneous flow, cumulative water injection.
5. Remote viewing of live video data in the monitoring center.
6. Lightning protected design.
7. Communication channel can be compatible with 3G/GPRS/CDMA.
|
